TWS2250 Stainless Steel Fluid Ends

TWS2250 Stainless Steel Fluid End Assembly
Raw Material：Selective Assembling, Alloy Steel(4330V,N-14,N-22), Stainless Steel(17-4PH,15-5PH).
High-tonnage equipment forging. Advanced technology ensures forging and grain uniformity, effectively controls the content of harmful iron elements.
Single-piece forging and single-piece heat treatment ensure stable product performance with strength and toughness.
Optimize the internal structure design of the product to enhance its service life. (Slot type, lantern cover type, eccentric support type), Strengthen the internal structure to make it wear-resistant and pressure-resistant.
The main components, such as the valve body, valve seat, and plunger in the improved cavity, have their raw material designs optimized to extend their service life.
Multiple size options (52", 56", and 60") can be matched with various mainstream pump trucks on the market.
The various piston sizes (3.75", 4"up to 6") meet the requirements of different fracturing process designs.
The preferred stainless steel can achieve a lifespan that is over four times longer at only half the cost of alloy steel.

Product Information

Technical Parameters

Maximum braking power	2,250HP (1,864KW)
Maximum load on the connecting rod	229,305lbf (1,020KW)
Stroke	8" (203.2mm)
Transmission mode	Double - round - column helical gear pair transmission
Gear ratio	6.353:1
Dimensions	93.0367.9945.35in (2,3631,7271,152mm)
Net weight	14,000lbs (6,350kg)

Introduction to the Hydraulic End

Product Name	Product Model	Product Material	Main Specifications	External Dimensions/mm
Hydraulic End Casing / Hydraulic End Assembly	TWS2250	4330V/17 - 4PH / 15 - 5PH	4.0"/4.5" / 5.0"/5.5"	914.45556.6504.8

PLUNGER SIZE	115				150				200				300				330
	GPM	LPM	PSI	MPA	GPM	LPM	PSI	MPA	GPM	LPM	PSI	MPA	GPM	LPM	PSI	MPA	GPM	LPM	PSI	MPA
3.75"	131	496	21500	148	171	647	20370	140	230	871	15100	104	340	1287	10032	69	380	1438	9125	63
4"	150	568	18900	130	195	738	17900	123	259	980	13176	91	390	1476	8853	61	427	1616	8033	55
4.5"	189	715	14850	102	246	931	14100	97	330	1249	10445	72	495	1874	6988	48	543	2055	6346	44
5"	235	889	12050	83	305	1154	11420	79	405	1533	8501	59	610	2309	5653	39	671	2540	5130	35
5.5"	285	1079	9995	69	360	1363	9450	65	495	1874	7026	48	738	2793	4670	32	814	3081	4235	29
6"	334	1264	8400	58	430	1628	7950	55	585	2214	5905	41	871	3297	4005	28	965	3653	3568	25

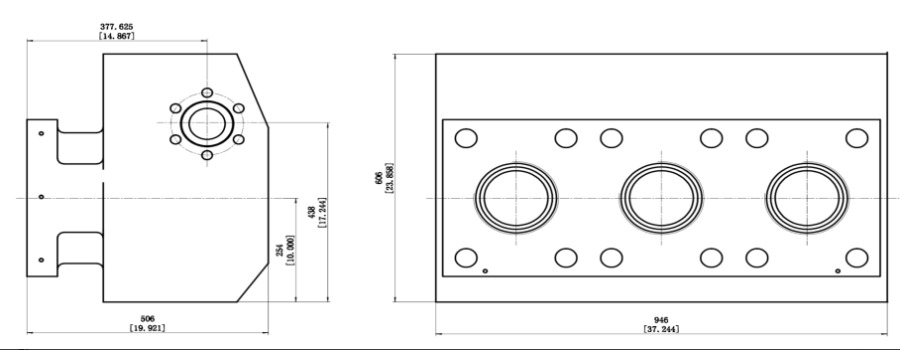

TWS2250 Fluid End outside dimensions

TWS2250 Stainless Steel Fluid End is a key component with excellent performance in all aspects.

The raw materials are high-quality stainless steel 17-4PH and 15-5PH. Although the cost is twice that of alloy steel, it can achieve more than 4 times the service life, with significant cost-effectiveness.

The production relies on high-tonnage German SIMATO equipment for forging. Advanced technology ensures forging ratio and grain homogenization. The iron content is ≤1. Combined with single-piece forging and heat treatment, it ensures stable product performance and excellent strength and toughness.

In terms of structural design, the inner cavity is optimized to be slot type, lamp cover type, eccentric bracket type, etc., which are wear-resistant and pressure-resistant after strengthening treatment. The raw material design of the main accessories, such as the valve body, valve seat, and plunger in the cavity, is improved to further extend the service life.

It has strong adaptability and is available in 52-inch, 56-inch, and 60-inch sizes, which can match all types of mainstream pump trucks; the plunger size ranges from 3.75 inches to 6 inches, which can meet the needs of different fracturing processes and is a reliable choice for fracturing operations.
